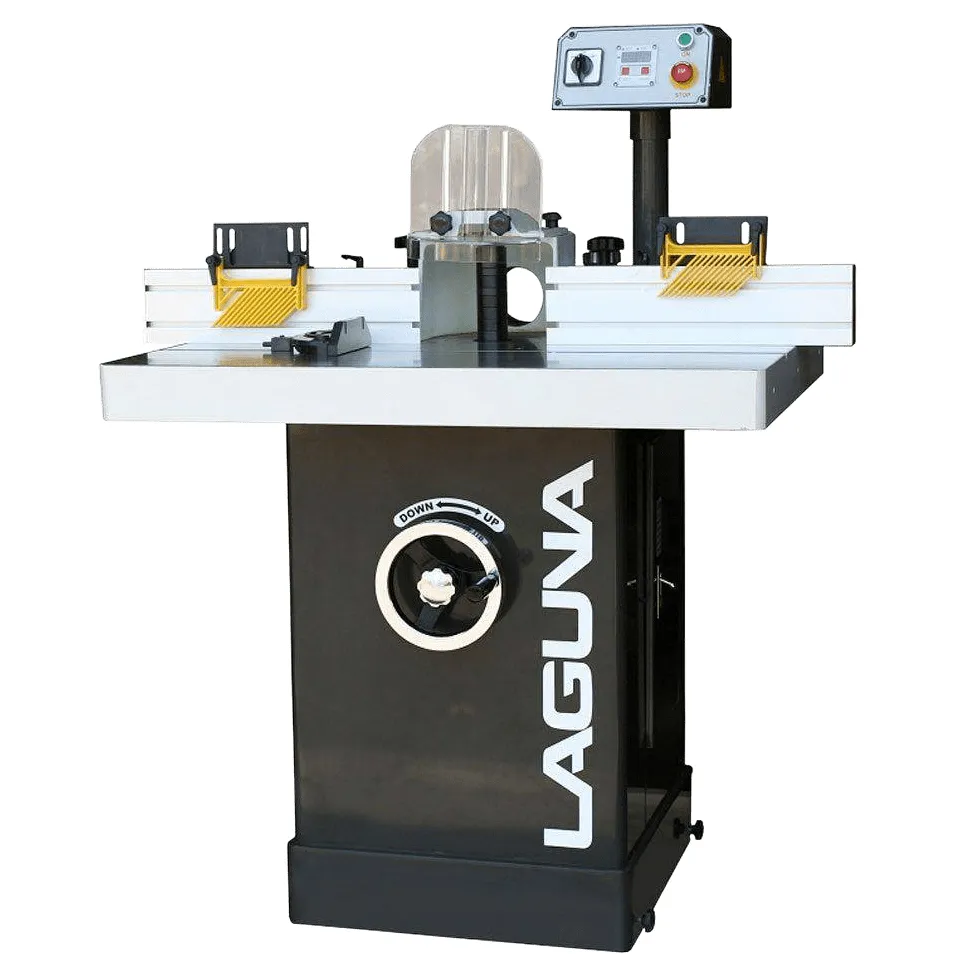

Laguna Tools Classic Shaper, Compact Pro
The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.
Features:
- Motor: 7.5HP 3 Phase 220V/5HP 1 Phase 220V
- Table size: 39-5/16″ x 31-7/16″ x 3-1/2″
- Spindle travel: 4″
- Spindle Sizes: 3/4″ and 1-1/4″
Additional Details
The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or . Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
Capacity Under Nut: 6″(For 1-¼″) and 4″(For ¾″)
Router Collets: ¼″ and ½″
Spindle Speeds:5000, 7000, 10000 RPM
Table Opening Diameter: 7-5/16″
Digital Readout: Standard
Direction: Forward/Reversing Switch
Fence: Micro Adjustment
Weight (Net/Ship): 640/720 lbs
Shipping Dimensions (L x W X H): 43″ x 43″ x 60″
Manual
